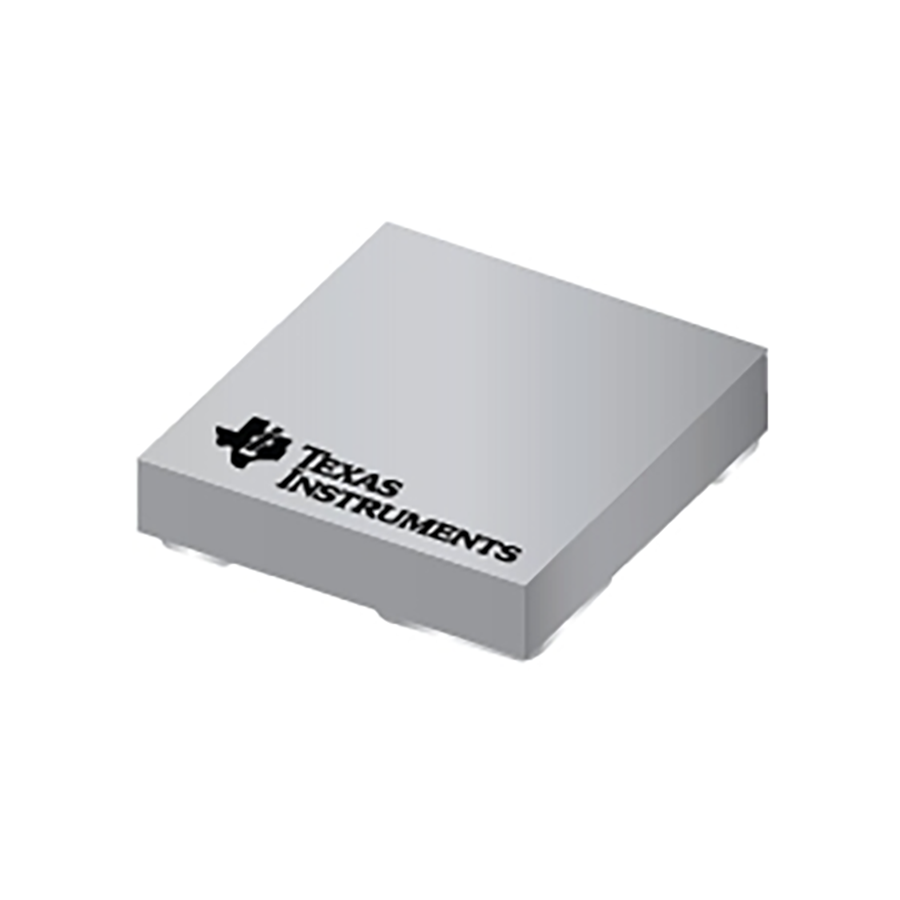

CSD85302L
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD85302L
Datasheet:
Description:
MOSFETs PICOSTAR-4 SMD/SMT N-Channel number of channels:2 1.7 W 20 V Continuous Drain Current (ID):7 A 6 nC
| Parameter | Value |
|---|---|
| Length | 1.35 mm |
| Width | 1.35 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Packaging | Reel |
| Thickness | 0.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Power Dissipation | 1.7 W |
| Power Dissipation | 1.7 W |
| Number of Channels | 2 |
| Input capacitance | 718 pF |
| Continuous Drain Current (ID) | 7 A |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 37 ns |
| Turn-Off Delay Time | 173 ns |
| Rise Time | 54 ns |
| Gate Charge | 6 nC |
| Drain to Source Resistance | 24 mΩ |
| Gate to Source Voltage (Vgs) | 10 V |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Gate to Source Threshold Voltage | 680 mV |
Stock: 553
Distributors
pcbx
pcbxUnit Price$0.35462
Ext.Price$0.35462
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35462 | $0.35462 |
| 10 | $0.31539 | $3.15390 |
| 50 | $0.28051 | $14.02550 |
| 100 | $0.24349 | $24.34900 |
| 500 | $0.21136 | $105.68000 |
| 1000 | $0.20328 | $203.28000 |
| 3000 | $0.19551 | $586.53000 |
| 5000 | $0.18463 | $923.15000 |
